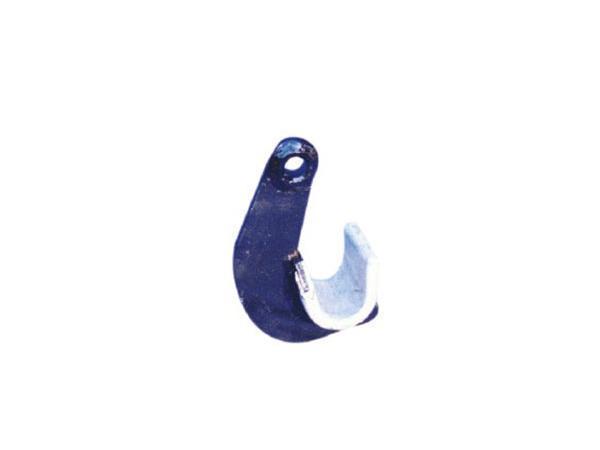

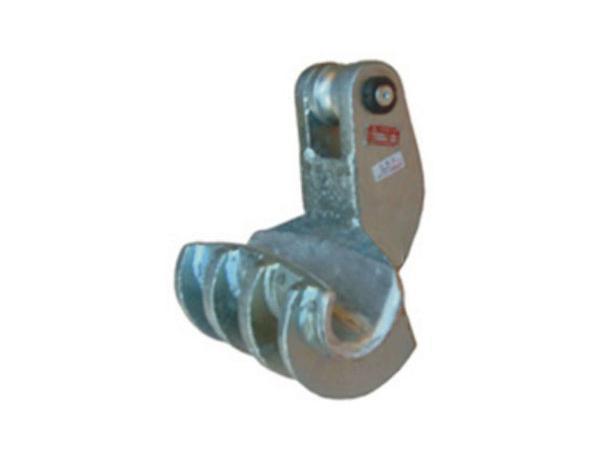

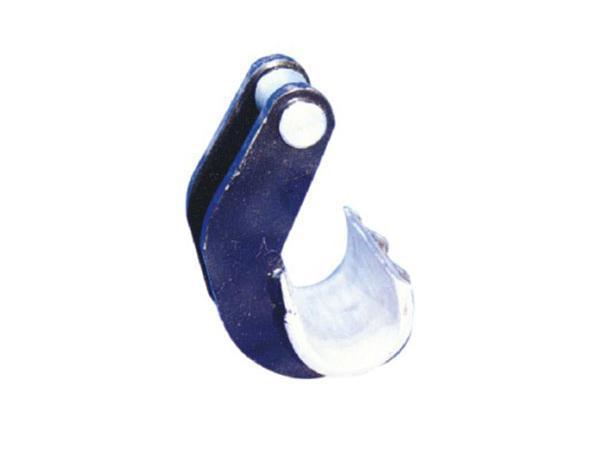

This conductor lifter is used for lifting three conductors on the side of 500kV and 750kV six-bundle conductor.
Technical Parameters
| Item number | 19101 | 19102 | 19103 | 19104 | 19105 |
| Model | ST8 | ST12 | ST25 | ST40 | ST60 |
| Rated load (kN) | 8 | 12 | 25 | 40 | 60 |
| Tray length (mm) | 60 | 120 | 200 | 260 | 265 |
| Tray width(mm) | 36 | 48 | 40 | 50 | 60 |
| Weight(kg) | 0.9 | 2.5 | 7 | 10.5 | 12 |
