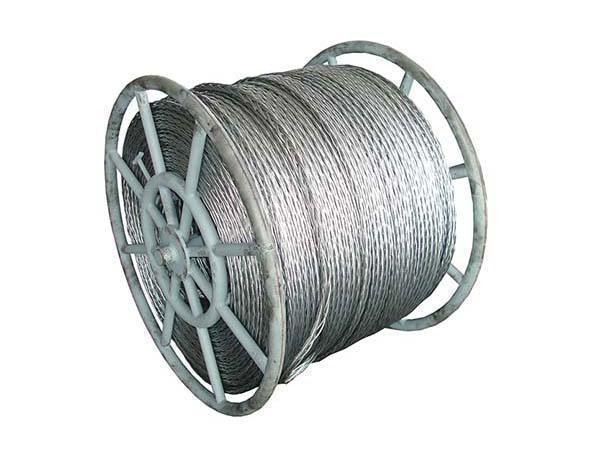

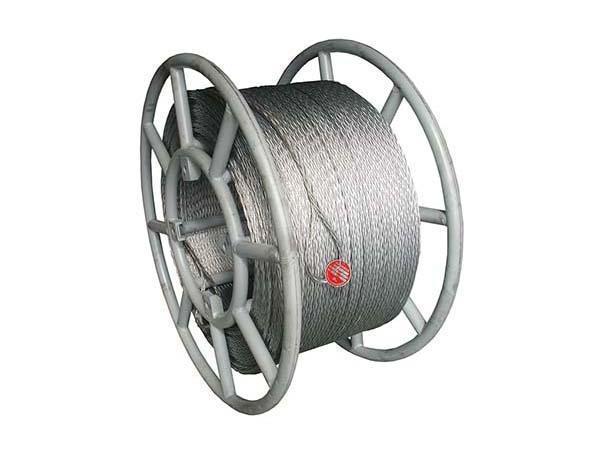

Anti-Twisting Braided Steel Rope

Home
Products
Stringing Equipment
Braided Steel Rope and Tool
Anti-Twisting Braided Steel Rope

Item number	Structure	Diameter (mm)	Single bundle diameter (mm)	Breaking force (kN)	Weight (kg/m)	Production length (m)
18101	Square eight strands	7	φ2.0	34.38	0.178	1000
18102		9	φ2.5	53.9	0.305
18103		11	φ3.0	76.94	0.386
18104		13	φ3.5	105.04	0.552
18105		15	φ4.0	137.51	0.692
18108	Square twelve strands	9	φ2.0	51.57	0.25
18109		11	φ2.5	80.8	0.458
18110		13	φ3.0	115.4	0.579
18111		15	φ3.5	157.55	0.828
18112		18	φ4.0	206.27	1.038
18113		20	φ4.5	260.3	1.331	800
18114		23	φ5.0	320.82	1.557
18115		25	φ5.5	387.83	1.882
18118	Hexagon twelve strands	11	φ2.5	80.8	0.458	1000
18119		13	φ3.0	115.4	0.579
18120		15	φ3.5	157.5	0.828
18121		18	φ4.0	205.71	1.038
18122		20	φ4.5	260.34	1.331	800
18123		23	φ5.0	320.82	1.638	800
18124		25	φ5.5	387.82	2.039	600
18125		27	φ6.0	461.5	2.373
18126		28	φ6.2	520	2.6
18127		30	φ6.5	560	3.12
18140	Hexagon eighteen strands	21	φ3.0	173.1	0.87	800
18141		24	φ3.5	236.33	1.242	800
18151		27	φ4.0	309.4	1.557	600
18152		30	φ4.5	389.28	1.997
18153		33	φ5.0	481.22	2.457
18154		36	φ5.5	581.75	3.059
18154A		39	φ6.0	692.26	3.56
18154B		42	φ6.5	817	4.227

●Uses :Applied to mechanical pulling and tensioning release conductors as pulling rope or leading rope.
●Feature: Braided 1960 Mpa high-strength galvanized steel wire .rotation resistance during pulling .
●The specification and length of the steel wire rope can be customized according to your request.
