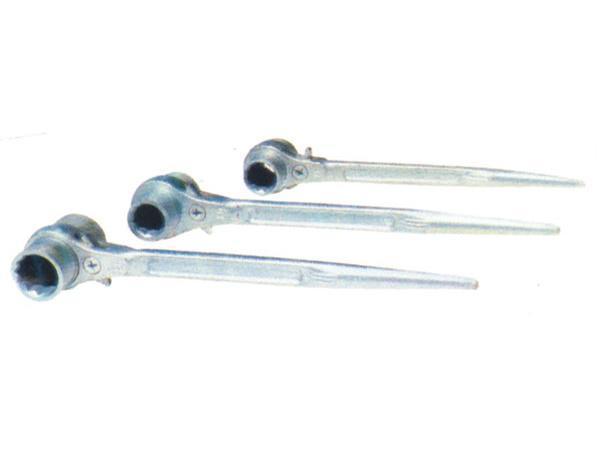

This ratchet wrench is often used to tighten up the hexagonal head bolts. It is convenient to be used, providing high speed. The specification mentioned in the following table refers to the dimension of opposite sides of hexagonal head.
Detailed Data
| Item number | Specification | Length (mm) | Weight (kg) |
| 05101 | 14(M8), 17(M10) | 310 | 0.6 |
| 05103 | 19(M12), 22(M14) | 310 | 0.6 |
| 05104 | 19(M12), 24(M16) | 310 | 0.6 |
| 05105 | 22(M14), 24(M16) | 310 | 0.6 |
| 05106 | 24(M16), 27(M18) | 310 | 0.7 |
| 05107 | 24(M16), 30(M20) | 360 | 0.9 |
| 05108 | 24(M16), 32(M22) | 360 | 0.9 |
| 05109 | 27(M18), 30(M20) | 360 | 0.9 |
| 05110 | 27(M18), 32(M22) | 360 | 0.95 |
| 05111 | 30(M20), 32(M22) | 360 | 1.0 |
| 05112 | 30(M20), 36(M24) | 360 | 1.0 |
| 05113 | 32(M22), 36(M24) | 360 | 1.1 |
