Steel Double Hook Turnbuckle
- Home
- Products
- Stringing Equipment
- Tightening Tool
- Steel Double Hook Turnbuckle

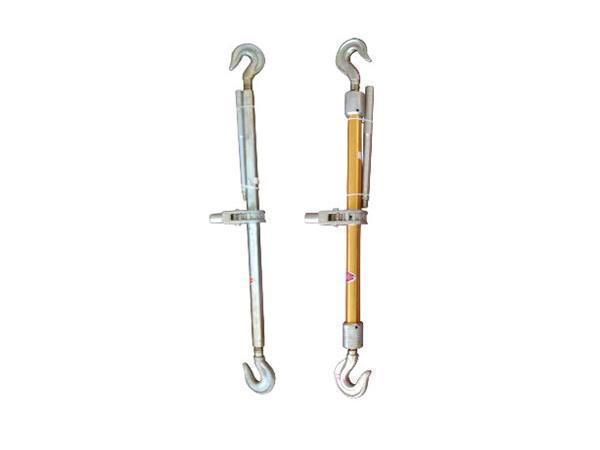

Our steel double hook turnbuckle plays a role in tightening the steel wire rope, stranded steel wire, and some others. This product from 14113 to 14116 can be also provided with the ring structure, which must be clearly indicated in the contract.
Detailed Data
| Item number | Model | Rated load (kN) | Maximum center distance | Adjustable distance (mm) | Weight (kg) | Remark |
| 14111 | SJS-0.5 | 5 | 800 | 300 | 2.5 | Steel |
| 14112 | SJS-1 | 10 | 860 | 250 | 3.5 | |
| 14113 | SJS-2 | 20 | 1050 | 340 | 4 | |
| 14114 | SJS-3 | 30 | 1350 | 470 | 6 | |
| 14115 | SJS-5 | 50 | 1440 | 510 | 8 | |
| 14116 | SJS-8 | 80 | 1670 | 560 | 8.5 | |
| 14117 | SJS-10 | 100 | 1740 | 600 | 10 | |
| 14121 | SJSL-1 | 10 | 768 | 290 | 2 | Aluminum Alloy |
| 14122 | SJSL-2 | 20 | 936 | 350 | 2.5 | |
| 14123 | SJSL-3 | 30 | 1296 | 530 | 4.5 | |
| 14124 | SJSL-5 | 50 | 1500 | 630 | 6 |
