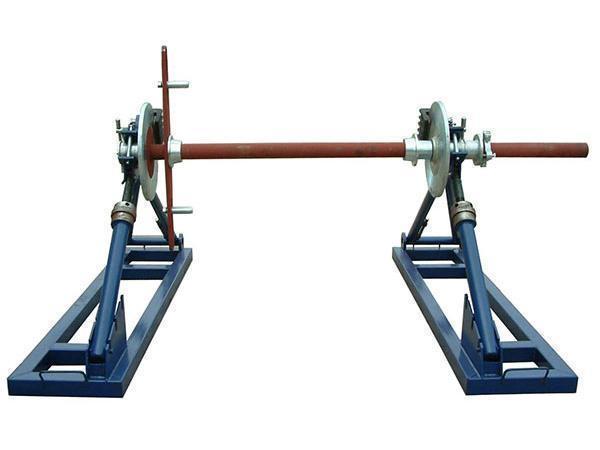

This integrated reel stand with disc tension brake can support the reel when applied to tension stringing or mechanical traction wire-laying. Also, it can be used for the braking of reel. For easy transportation, this product can be disassembled into three parts. Our SIPZ-7 type product is designed with the double disc brake structure.
Detailed Data
| Item Number | 15141 | 15142 | 15143 | |
| Model | SIPZ3A | SIPZ5A | SIPZ-7 | |
| Applicable Reel | Diameter of Coil (mm) | Φ900~1600 | Φ1600~2400 | Φ1800~2500 |
| Width of Coil (mm) | ≤1350 | ≤1350 | ≤1700 | |
| Diameter of Axle Hole (mm) | Φ65-100 | Φ65-100 | Φ120 | |
| Maximum Weight (kg) | 3000 | 5000 | 7000 | |
| Braking Torque (N·m) | 1000 | 1000 | 2000 | |
| Pay-off Speed (m/min) | 80 | 80 | 80 | |
| Weight (kg) | 200 | 215 | 480 | |
