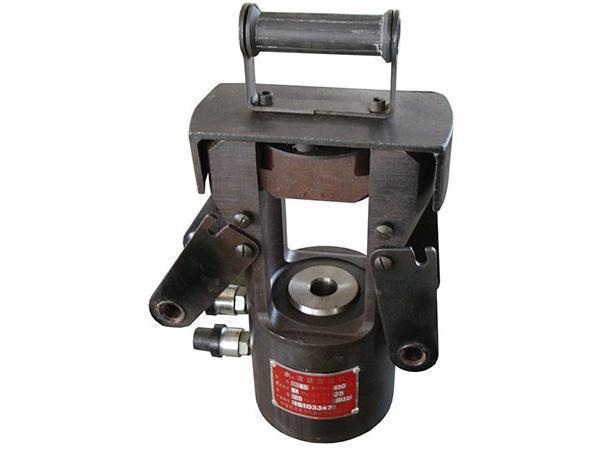

This QY hydraulic crimping tool is able to crimp the conductor, earth wire, as well as the terminals joining aluminum wires to copper wires. Our product can be divided into various types. Both 16101 and 16102 types are equipped with the manual or single-tube electric pump. 16103, 16104 and 16105 types are fitted with the super high pressure hydraulic pump station. In addition, the matched dies need to be purchased additionally.
Technical Parameters
| Item number | Model | Maximum Compression(kN) | Maximum oil pressure (MPa) | Suitable copper terminals | Stroke(mm) | Weight (kg) |
| 16101 | SCHX-25 | 250 | 70 | 50-630 | 5.5 | |
| 16101A | FYQ-630A | 316 | 70 | 150-630 | 35 | 15.4 |
| 16101B | SCHX-45 | 450 | 70 | 50-800 | 10.6 | |
| 16102 | QY-35 | 350 | 70 | 25 | 12 | |
| 16103 | QY-65 | 650 | 94 | ≤ACSR500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | ≤ACSR720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | ≤ACSR1440 | 25 | 85 |
