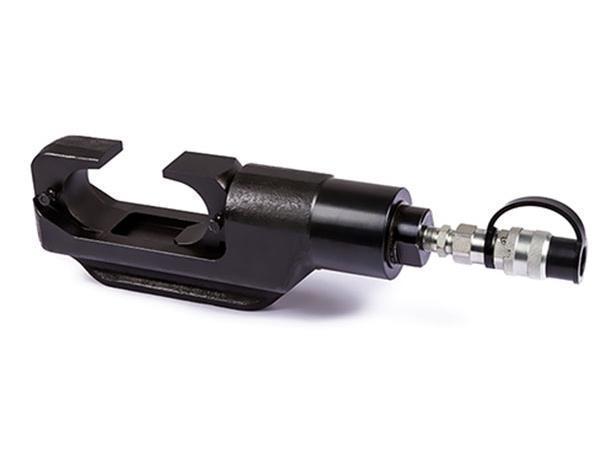

Split Type Hydraulic Compressor

Uses: It used to compress the copper and aluminum terminals
Notes: Packaged in steel box

Specifications

Item Number 16210D
Model SCHX-610
Max Compression(kN) 150
Compress range Copper Terminal:50-400mm²
Aluminum Terminal:35-300mm²
Weight(kg) 5.3
Compress Die Size Hexagon Die: 50,70,95,120,150,185,240,300,400
Characteristic C type open design, convenient to put and get compression tube. Max open to 50mm and compress tube to 240mm² easily。 Use high speed connector which easy to remove
Applicable Pump HPX-700,HPX-700A,PEX-1,PEX-2
