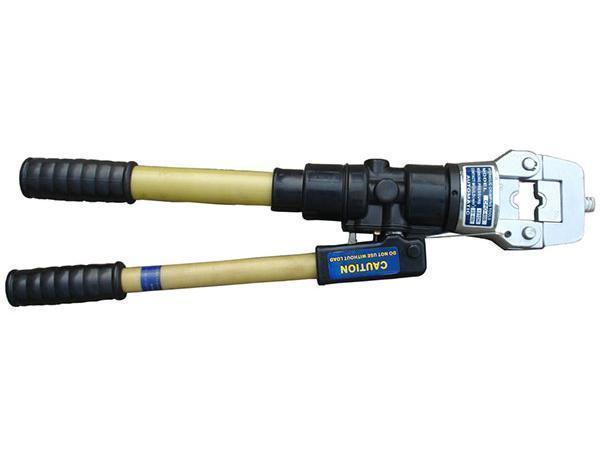

Manual Hydraulic Press Tool

Main Specifications

Item number 16192 16193 16199 16200
Model CPO-300 CPO400 CYO-410 CYO-510B
Maximum compression (kN) 120 130 120 130
Stroke (mm) 19 22 30 38
Range of compression joint Copper terminals: 16-300mm2 Copper terminals: 50-400mm2 Copper terminals: 50-400mm2 Copper terminals: 50-400mm2
Aluminium terminals: 10-240mm2 Aluminium terminals: 35-300mm2 Aluminium terminals: 35-300mm2 Aluminium terminals: 35-300mm2
Weight (kg) 4.3 6.6 6.4 7.4
Dies Hexagon dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 Hexagon dies : 50, 70, 95, 120, 150, 185, 240, 300, 400 Hexagon dies: 50, 70, 95, 120, 150, 185, 240, 300, 400 Hexagon dies : 50, 70, 95, 120, 150, 185, 240, 300, 400
