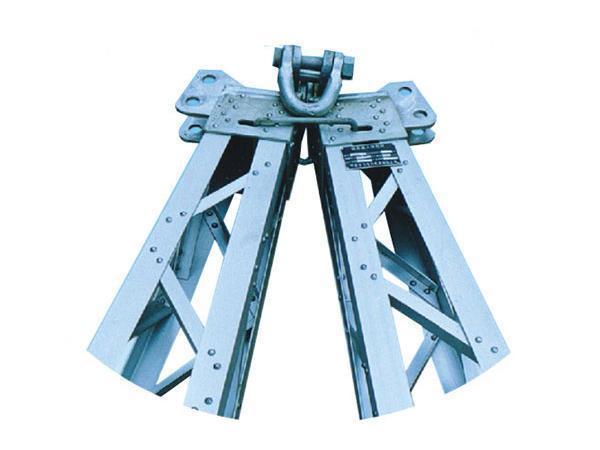

A-Shape Lattice Gin Pole

Home
Products
Stringing Equipment
Gin Poles
A-Shape Lattice Gin Pole

Uses: To assemble and erect the tower and pole in transmission and distribution construction.
Notes:
1. Two kinds of head are optional : "upending style", "fixed style", please specify when placing orders.
2. Use high strength angle aluminum alloy as main materials, steel parts are galvanized.
3. The safety factor is 2.5
4. Model whose postfix "A" means it is universal and "B" means strengthened

Technical Parameters

Item number	Model	Length (m)	Base stroke (m)	Allowable vertical load (kN)	Cross section (mm)	Weight (kg/m)
03361	LBR250-8	8	2.8	72	□250	10.5
03362	LBR250-9	9	3.1	56
03363	LBR250-10	10	3.5	45
03364	LBR250-11	11	3.8	38
03365	LBR250-12	12	4.2	32
03366	LBR250-13	13	4.5	27
03371	LBR300-8	8	2.8	100	□300	11
03372	LBR300-9	9	3.1	87
03373	LBR300-10	10	3.5	70
03374	LBR300-11	11	3.8	56
03375	LBR300-12	12	4.2	47
03376	LBR300-13	13	4.5	40
03377	LBR300-14	14	4.9	35
03378	LBR300-15	15	5.2	31
03379	LBR300-16	16	5.6	26
03381	LBR350-8	8	2.8	120	□350	13.5
03382	LBR350-9	9	3.1	105
03383	LBR350-10	10	3.5	94
03384	LBR350-11	11	3.8	78
03385	LBR350-12	12	4.2	65
03386	LBR350-13	13	4.5	58
03387	LBR350-14	14	4.9	46
03388	LBR350-15	15	5.2	42
03389	LBR350-16	16	5.6	37
03391	LBR400-11A	11	3.8	98	□400	14.5
03392	LBR400-12A	12	4.2	85
03393	LBR400-13A	13	4.5	75
03394	LBR400-14A	14	4.9	64
03395	LBR400-15A	15	5.2	56
03396	LBR400-16A	16	5.6	48
03397	LBR400-17A	17	5.9	44
03398	LBR400-18A	18	6.3	38
03401	LBR400-11B	11	3.8	147	□400	16.5
03402	LBR400-12B	12	4.2	129
03403	LBR400-13B	13	4.5	113
03404	LBR400-14B	14	4.9	98
03405	LBR400-15B	15	5.2	86
03406	LBR400-16B	16	5.6	75
03407	LBR400-17B	17	5.9	69
03408	LBR400-18B	18	6.3	60

Uses: To assemble and erect the tower and pole in transmission and distribution construction.
Notes:
1.Two kinds of head are optional: "upending style", "fixed style", please specify when placing orders.
2.The base of cross section 300, 350 and 400A gin pole are half-round, the others are quadrate.
3.Use high strength angle aluminum alloy as main materials, steel parts are galvanized.
4.The safety factor is 2.5
5.Model whose postfix "A" means it is universal and "B" means strengthened

Item number	Model	Length (m)	Base stroke (m)	Allowable vertical load (kN)	Cross section (mm)	Weight (kg/m)
03411	LBR500-13A	13	4.5	162	□500	18
03412	LBR500-14A	14	4.9	148
03413	LBR500-15A	15	5.2	136
03414	LBR500-16A	16	5.6	125
03415	LBR500-17A	17	5.9	112
03416	LBR500-18A	18	6.3	98
03417	LBR500-19A	19	6.6	88
03418	LBR500-20A	20	6.9	81
03421	LBR500-13B	13	4.5	256	□500
03422	LBR500-14B	14	4.9	234
03423	LBR500-15B	15	5.2	215
03424	LBR500-16B	16	5.6	196
03425	LBR500-17B	17	5.9	173		22
03426	LBR500-18B	18	6.3	151
03427	LBR500-19B	19	6.6	138
03428	LBR500-20B	20	6.9	127
03431	LBR600-15A	15	5.2	171	□600
03432	LBR600-16A	16	5.6	160
03433	LBR600-17A	17	5.9	148
03434	LBR600-18A	18	6.3	138
03435	LBR600-19A	19	6.6	130		20
03436	LBR600-20A	20	6.9	120
03437	LBR600-21A	21	7.3	108
03438	LBR600-22A	22	7.6	96
03441	LBR600-15B	15	5.2	275	□600
03442	LBR600-16B	16	5.6	252
03443	LBR600-17B	17	5.9	234
03444	LBR600-18B	18	6.3	219
03445	LBR600-19B	19	6.6	204		24
03446	LBR600-20B	20	6.9	186
03447	LBR600-21B	21	7.3	168
03448	LBR600-22B	22	7.6	150
