Hand Crank Winch

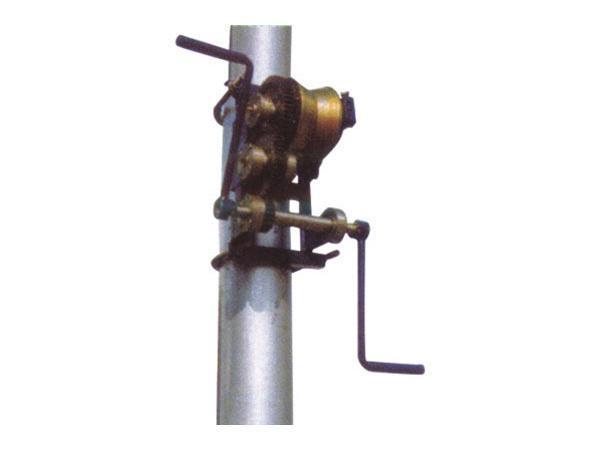

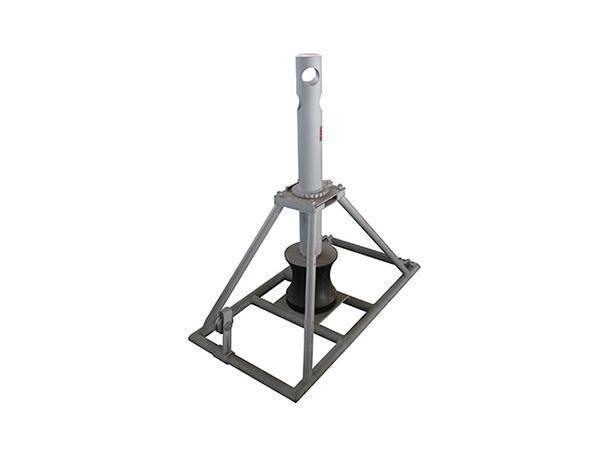

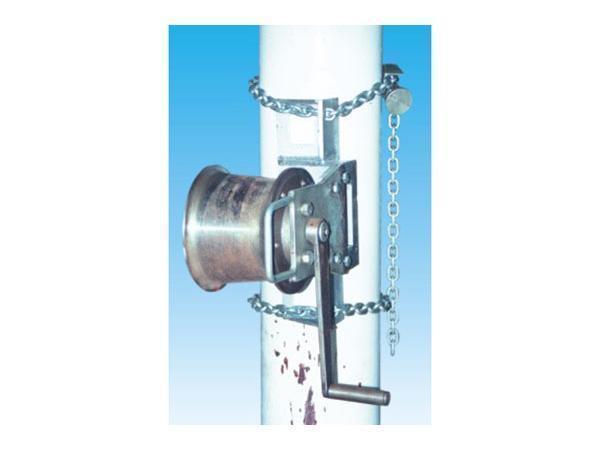

Our SJ5 type hand crank winch can utilize a drum as its reel stand. This drum can accommodate the steel wire rope with diameter of 6.2mm and length of 15m.


Item Number 09182 09193
Model SJB SJ5
Rated Traction Force (kN) 5 5
Structural Style Dual swing arm
Open type drive
Single Swing Arm
Planetary gear drive
Transmission Ratio 1:5 1:20
Fixed Form Round bar ≤Φ250 Round bar ≤Φ400
Angle iron ≥< 63
Diameter of Drum Groove (mm) Φ120 Φ135
Weight (kg) 20 23
