Iron Hoisting Block

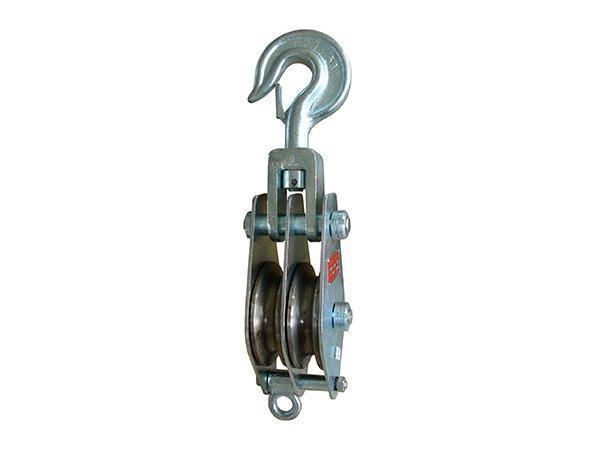

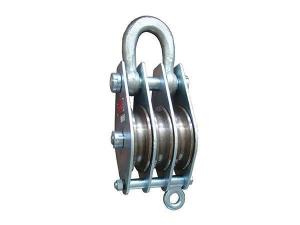

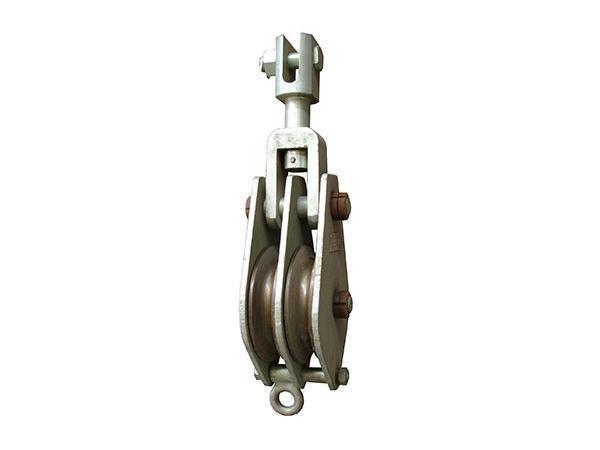

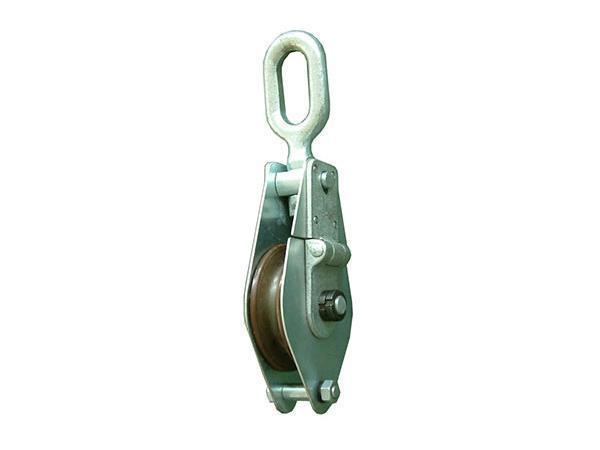

Our iron hoisting block is widely applicable to the erection of overhead line structures, lifting equipment, and other hoisting operations. This product is classified as hook style (G), ring style (H), or clevis style (B). Thus, the style our customer needs must be clearly indicated in the contract when the order is placed.

Technical Parameters

Item Number Model Number of Sheave Rated Load (kN) Sheave
Outer Diameter × Sheave Width (mm)
Rope Diameter (mm) Weight (kg) Hoisting Point Type
11181 QH1-1K 1 10 Φ100×31 Φ7.7 2.8 G H
11182 QH1-2 2 10 Φ80×28 Φ6 2.8 G H
11183 QH1-3 3 10 Φ80×27 Φ6 4.1 G H
11191 QH2-1K 1 20 Φ120×35 Φ9.3 4.2 G H B
11192 QH2-2 2 20 Φ100×31 Φ7.7 4.2 G H
11193 QH2-3 3 20 Φ100×31 Φ7.7 6 G H
11201 QH3-1K 1 30 Φ150×39 Φ11 7 G H B
11202 QH3-2 2 30 Φ120×35 Φ9.3 5.3 G H
11203 QH3-3 3 30 Φ100×31 Φ7.7 6.5 G H
11211 QH5-1K 1 50 Φ166×40 Φ13 9.6 G H B
11212 QH5-2 2 50 Φ150×39 Φ11 10.8 G H
11213 QH5-3 3 50 Φ120×35 Φ9.3 7.7 G H
11221 QH8-1K 1 80 Φ205×50 Φ17 12.5 G H B
11222 QH8-2 2 80 Φ166×40 Φ13 17 G H
11223 QH8-3 3 80 Φ150×39 Φ11 17.5 G H
11231 QH10-1K 1 100 Φ246×60 Φ18.5 25 G B
11232 QH10-2 2 100 Φ166×40 Φ13 18.5 H
11233 QH10-3 3 100 Φ150×39 Φ11 20 H
11241 QH15-1K 1 150 Φ280×65 Φ21.5 34 B
11242 QH15-2 2 150 Φ205×50 Φ17 22 H
11243 QH15-3 3 150 Φ166×40 Φ13 26 H
11244 QH15-4 4 150 Φ150×39 Φ11 30 H
11248 QH20-4 4 200 Φ205×50 Φ17 50 H
