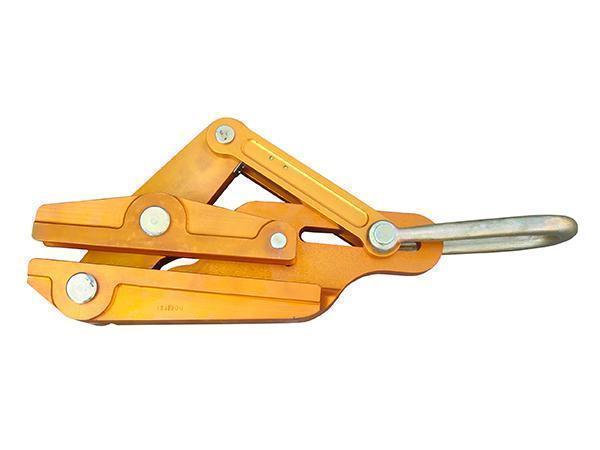

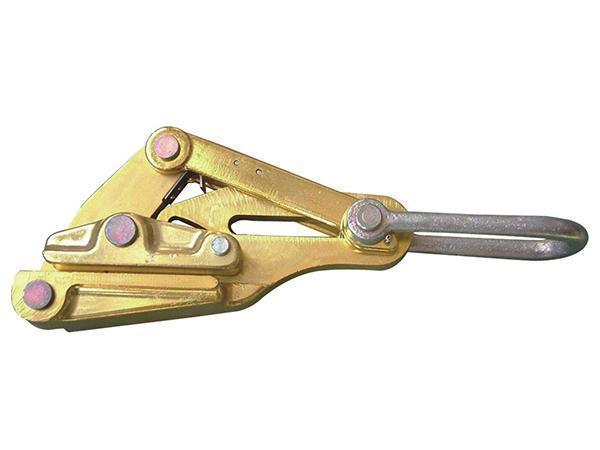

This aluminum alloy conductor gripper serves to adjust the sag and tighten the overhead line conductors. It is forged from high strength aluminum alloy material, which possesses small size and light weight.
Detailed Data
| Item Number | Model | Rated Load (kN) | Applicable Conductor | Maximum Gap (mm) | Weight (kg) |
| 13221 | SKL-7 | 7 | LGJ25~70 | 14 | 1.0 |
| 13222 | SKL-15 | 15 | LGJ95~120 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | LGJ150~240 | 24 | 3.0 |
| 13224 | SKL-40 | 40 | LGJ300~400 | 32 | 4.0 |
| 13225 | SKL-50A | 50 | LGJ500 | 34 | 6.6 |
| 13226 | SKL-50B | 50 | LGJ630 | 36 | 6.6 |
| 13227 | SKL-60 | 60 | LGJ720 | 38 | 9.2 |
| 13228 | SKL-70 | 70 | LGJ900 | 42 | 14 |
| 13229 | SKL-80 | 80 | LGJ1000 | 45 | 18 |
| 13229A | SKL-80A | 80 | LGJ1120 | 48 | 18 |
