Anti-Twisting Steel Wire Rope Gripper
- Home
- Products
- Stringing Equipment
- Gripping Clamp / Grippers
- Anti-Twisting Steel Wire Rope Gripper

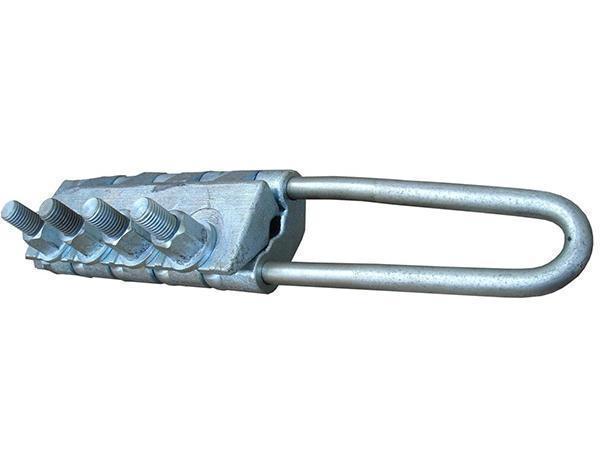

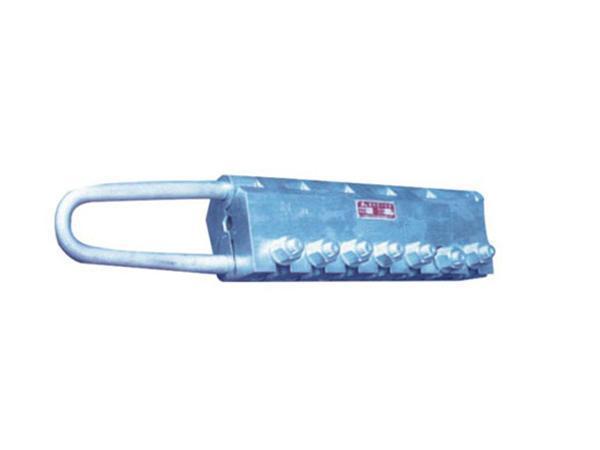

This SKGF series anti-twisting steel wire rope gripper contains the compression nut which must be tightened repeatedly in order to meet the demands for the specified torque.
Technical Parameters
| Item Number | Model | Rated Load (kN) | Applicable Steel Wire Rope | Weight (kg) |
| 13171 | SKGF-2 | 20 | 7, 9 | 5.6 |
| 13172 | SKGF-3 | 30 | 11 | 5.6 |
| 13173 | SKGF-5 | 50 | 13, 15 | 18 |
| 13174 | SKGF-6 | 60 | 16, 18 | 18 |
| 13175 | SKGF-8 | 80 | 20 | 20 |
| 13176 | SKGF-10 | 100 | 22, 24 | 20 |
