Steel Rope Gripper
- Home
- Products
- Stringing Equipment
- Gripping Clamp / Grippers
- Steel Rope Gripper

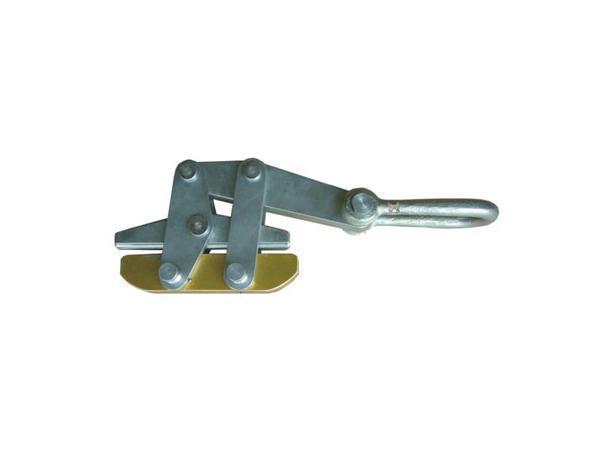

This SKG-N series steel rope gripper is suitable for gripping the anti-twist steel wire rope. It is equipped with the V shaped single jaw. Both side panels of our product bear the symmetric force. In this way, the weight can be effectively reduced. When the order is placed, the detailed specifications about the anti-twist steel wire rope should be clearly indicated.
Technical Parameters
Item Number | Model | Rated L oad (kN) | Applicable Wire Rope (mm) | Weight (kg) |
13154 | SKG30N | 30 | Φ9~11 | 4.6 |
13155 | SKG50N | 50 | Φ11~15 | 6.5 |
13156 | SKG70N | 70 | Φ16~18 | 8.5 |
13157 | SKG120N | 120 | Φ19~21 or Φ22~24 | 13.6 |
13158 | SKG200N | 200 | Φ26~30 | 32.5 |
