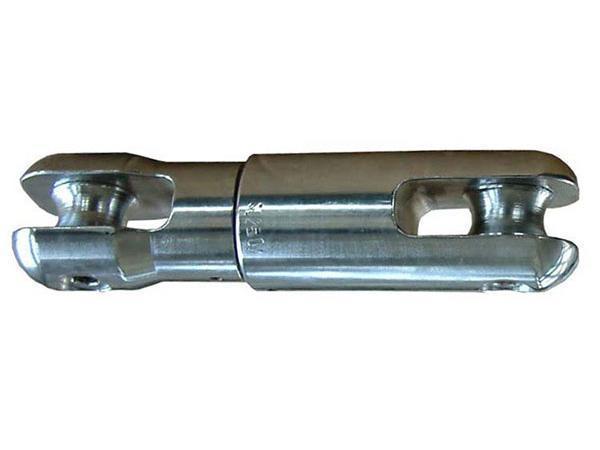

This line stringing swivel is extensively used for the connection of the pulling rope and the mesh sock joint mounted on the conductor. It can prevent the accumulation of torsional strain, which is generally installed on the thrust bearing. In addition, our product is constructed from the galvanized steel with high tensile strength. Thanks to the special design, it can withstand the high radial loads during the passage through the pulleys.
Main Technical Parameters

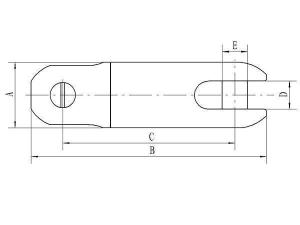

| Item Number | Model | Main Dimension (mm) | Rated Load (kN) | Weight (kg) | ||||
| A | B | C | D | E | ||||
| 17121 | SLX-0.5 | 19 | 61 | 40 | 8 | 9 | 5 | 0.2 |
| 17122 | SLX-1 | 30 | 100 | 70 | 12 | 13 | 10 | 0.4 |
| 17123 | SLX-2 | 35 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| 17124 | SLX-3 | 37 | 129 | 95 | 16 | 16 | 30 | 0.65 |
| 17125 | SLX-5 | 42 | 154 | 116 | 18 | 17 | 50 | 1.5 |
| 17125A | SLX-6.5 | 51 | 185 | 140 | 20 | 19 | 65 | 2.0 |
| 17126 | SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| 17127 | SL130 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| 17128 | SL180 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| 17129 | SL250 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| 17130 | SL250Y | 80 | 323 | 243 | 30 | 30 | 250 | 8.0 |
| 17130A | SL320 | 85 | 346 | 264 | 38 | 30 | 320 | 9.7 |

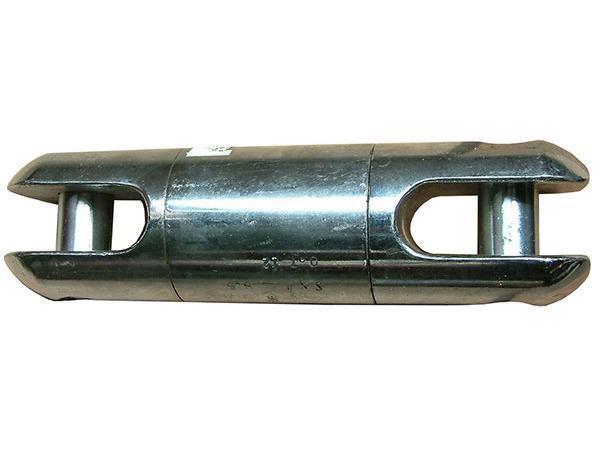

Notes:Model SL80Y and SL250Y are rocking head type, rocking angle≮6°
