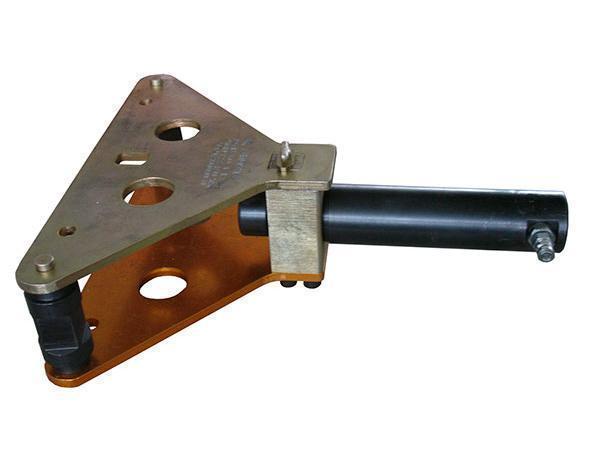

YJZ2 Splice Sleeve Straightener

Our YJZ2 splice sleeve straightener serves to straighten the bent splice sleeve with its specification of LGJ720 or below after the crimping process. This product weighs 12kg, and its maximum straightening force reaches 20kN. The item number is 17211.


Item number 17211 17212 17212A
Model YJZ2 YJZ3 YJZ4
Maximum straighten force(kN) 20 50 150
Maximum applicable conductor ACSR720 ACSR900 ACSR1250
Maximum diameter of splicing sleeves(mm) Φ60 Φ68 Φ80
Dimension(mm) 300×260×507 452×391×145 400×375×140
Weight(kg) 12 13.5 15.5
Remark Need to purchase mathched manual pump CSB63
