Cable Feeder
This cable feeder is used for stringing the large diameter of electric power cable and communication cable. If the core grinding is required, it should be indicated in the contract.
Uses: to string large diameter electric power cable and communication cable.
Notes:
1. Please writie in contract clearly if need to purchase winch.

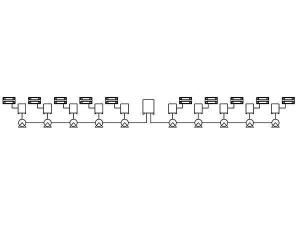

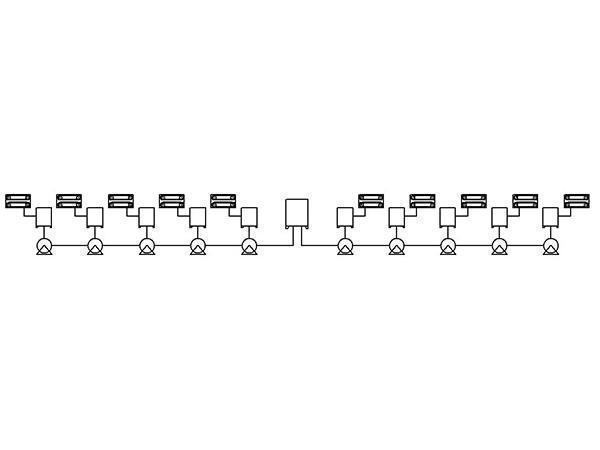

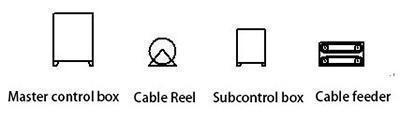

2. Each cable feeder including a cable reel and sub-control box, the cable reel can packaging 70m cable.
3. The control box is free if the quantity you purchase over 6 sets
Technical Parameters
| Item Number | Diameter of Suitable Cable (mm) | Pulling Force (kN) / Speed (m/min) | Motor Power (kW) | Overall Dimensions (mm) | Weight (kg) | Remark |

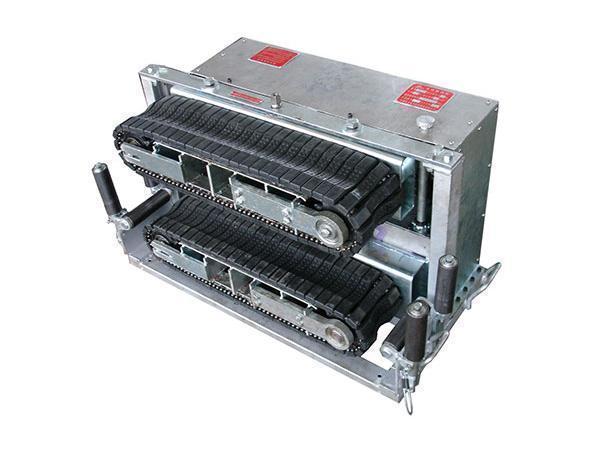

| 21102 | Φ60-Φ140 | 5/6.5 | 1.5 | 948×470×542 | 203 | Updown Configuration crawler |

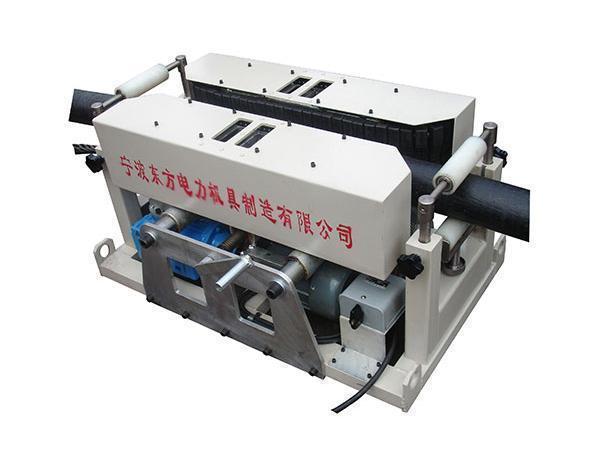

| 21103B | Φ40-Φ150 | 5/6.5 | 2*0.55 | 900×617×452 | 190 | Right and left Configuration crawler |

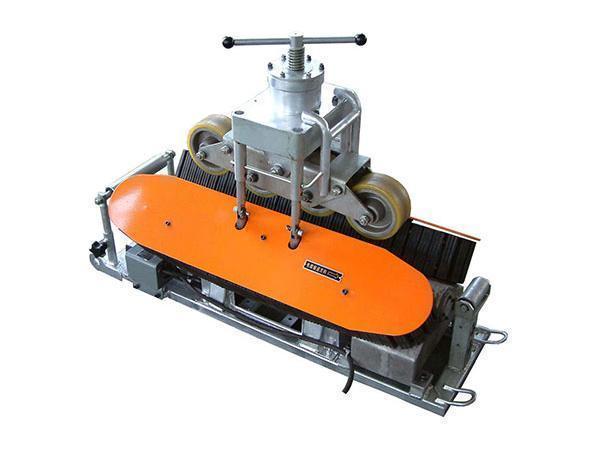

| 21105 | Φ40-Φ130 | 5/6.5 | 1.5 | 1060×437×690 | 148 | V type configuration crawler |
| 21106 | Φ50-Φ200 | 8/6.5 | 2*0.75 | 1000×657×464 | 220 | Right and left Configuration crawler |
