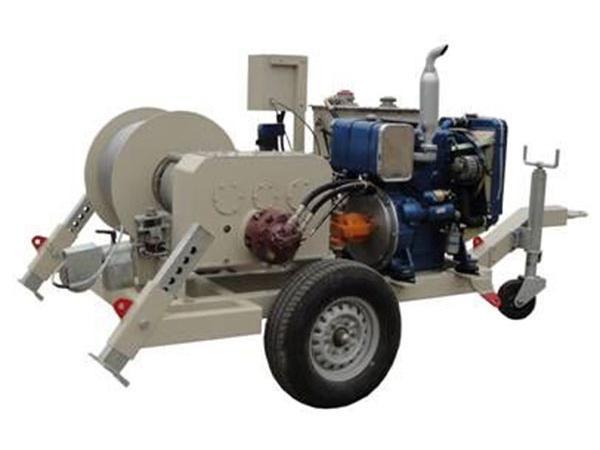

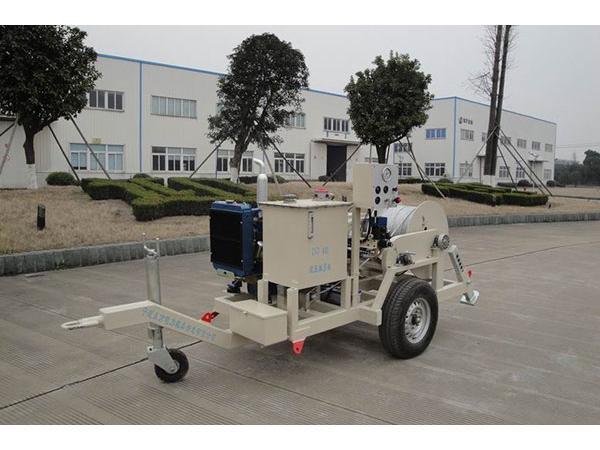

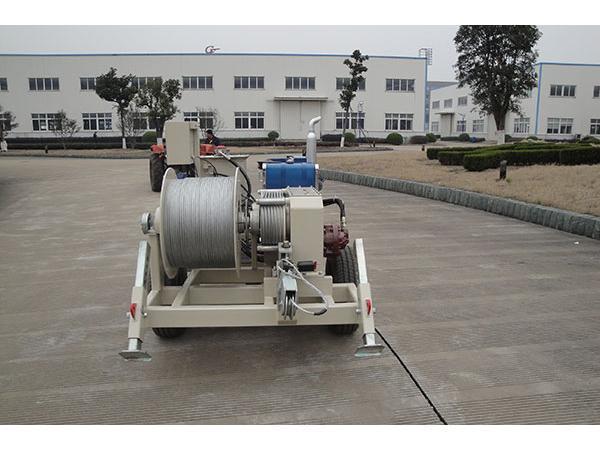

Our DQ40 cable puller is mainly applicable to the stringing operation of underground cable. It adopts the hydraulic transmission system, providing infinitely variable speed as well as over-pull protection. In addition, this product prominently features automatic rope winding. It is also equipped with a measuring device for setting the pulling length.
Technical Parameters
| Item Number | 21135 | |
| Model | DQ40 | |
| Maximum Continuous Pulling Force (kN) | 40 | |
| Hauling Speed (m/min) | 0~12 | |
| Diameter of Steel Rope (mm) | Φ11 | |
| Length of Steel Rope (m) | 650 | |
| Motor | Power (hp) | 24 |
| Rotational Speed (rpm) | 2000 | |
| Overall Dimensions (m) | 3.67×1.60×1.65 | |
| Weight (kg) | 2000 | |
