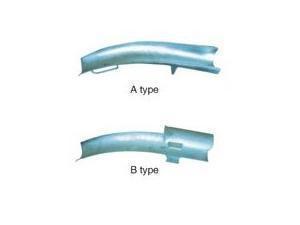

Cable Protective Bend

Our cable protective bend is made of galvanized steel material. It is extensively applicable to the protection of cable and pulling rope at the cable hole.

Main Specifications

Item Number 21321 21322 21322A 21325 21326
Structural Style A A A B B
Diameter of Tube (mm) Φ100 Φ130 Φ150 Φ100 Φ130
Curvature Radius (mm) R400 R450 R450 R400 R450
Weight (kg) 3.2 5.2 5.9 3.4 6
Inquiry Form
